Caribbean Atlantic Margin Deep Imaging (CAMDI)

02 April 2019

The 16,563 km survey is targeting the highly prospective and underexplored basin along the Southeastern Caribbean and Western Atlantic margin of Northeast South America.

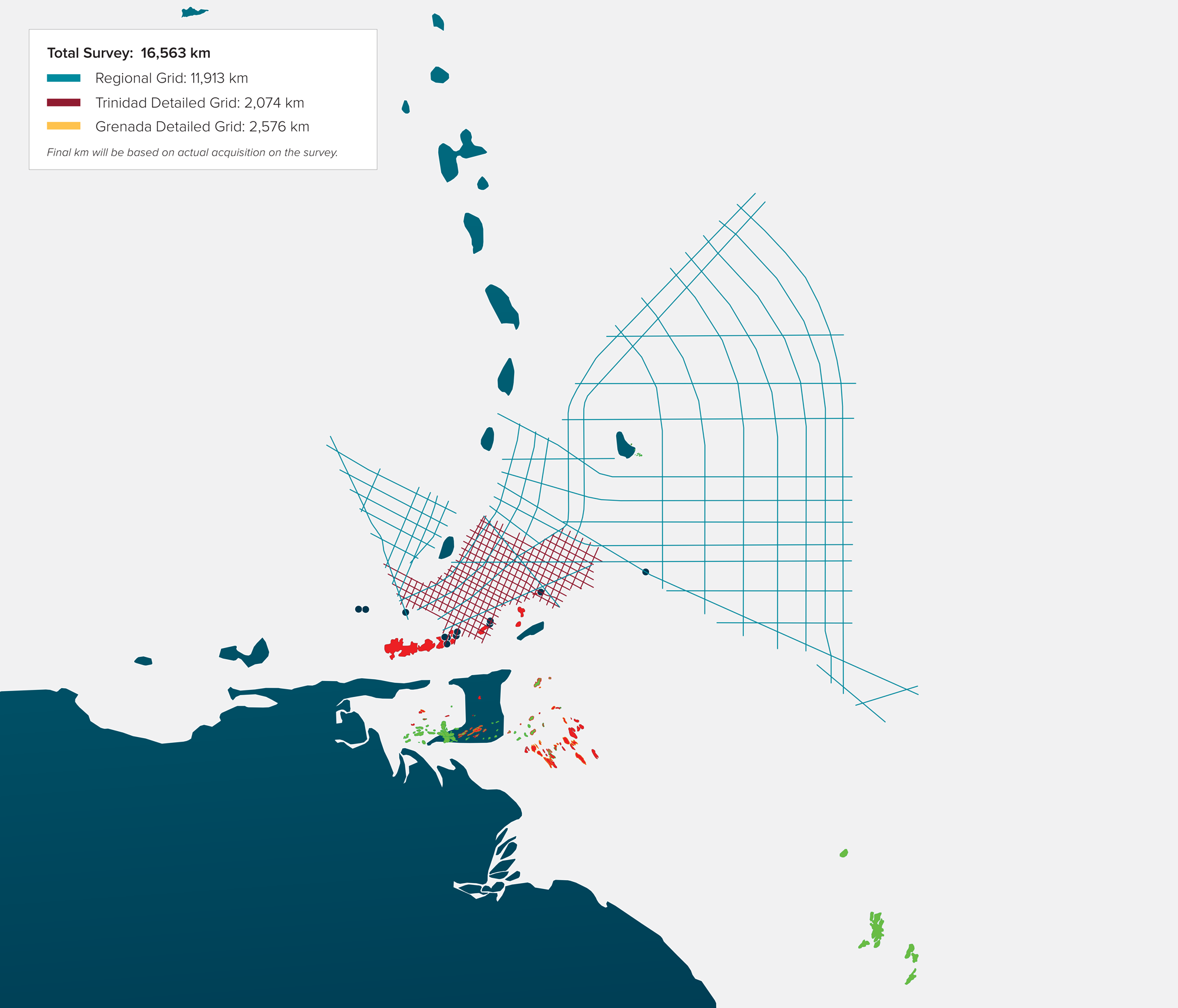

Survey Design

The Caribbean Atlantic Margin Deep Imaging survey is designed in two grids. The Regional Grid is designed to assist oil companies to better understand the regional tectonic framework of the various basins along the Southeastern Caribbean and Western Atlantic margin of Northeast South America. The Detailed Grid, off Trinidad and Grenada, is to provide more detail, tying the producing areas to the underexplored deeper part of the Tobago Trough. The Tobago Trough is an under explored area flanked by oil and gas production to the East and South in Barbados and Trinidad and Tobago and recently, with a new gas discovery offshore Grenada. Based on seismic interpretation of the 2013 MCG 2D survey in Barbados, a thick sedimentary succession can be observed in the Tobago Trough. The presence of a mature La Luna oil prone source rock in the Trough seem likely.

The Caribbean Atlantic Margin Deep Imaging survey will tie the Sandy Lane well in Barbados in addition to the Orchid and Hibiscus and several deeper wells in Trinidad and Tobago. Data will be processed in both time and depth, utilizing the latest broadband technology. Gravity and Magnetic data will also be acquired with the survey.

The Caribbean Atlantic Margin Deep Imaging survey is to be acquired in two parts, the Regional Grid and the Detailed Grid. Acquisition of the regional grid started on the 16th July and covering, Barbados, Trinidad and Tobago, Grenada and St. Vincent. (Some changes to the program in St. Vincent grid are possible). For the regional grid a 37.5 meter shotpoint interval and Continuous recording 18 second record length will be used. The Detailed Grid will be acquired using the same parameters as the Regional Grid and will cover Trinidad and Tobago and Grenada.

The surveys will form a part of upcoming License rounds in the region.

Survey Acquisition Parameters

Concept

Parameter

Acquisition system

Sercel Seal System

Shotpoint interval

37.5 m

Sample rate

2 ms

Cable type

Sentinel Solid Streamer

Number of receivers

960

Receiver interval

12.5 m

Cable length

12 km

Cable depth

12 m (+/-1 m)

Fold

160

Recording time

18 s (Continuous Recording)

Overlap

TBD

Recording mode

Continuous Recording

Receiver type

Solid: Sercel Flexible Hydrophone

Source type

G-GUN

Source volume

5,020 in2

Number of sources

1

Pressure

2,000 psi

Source depth

7.5 (+/- 1 m)

Filter

3 HZ analogic-Filter antialias linear

Data format

8058 IEE

X min

150 m

X max

12,200 m

Gravity

 Yes

Magnetic

 Yes
